Happy Holidays!

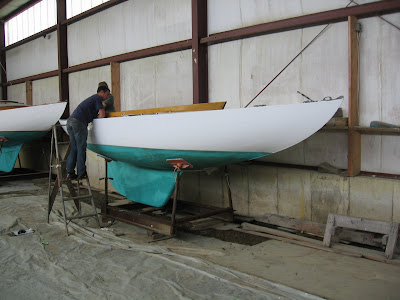

The mermaid has been moving along nicely. The caulking and fairing were not nearly as bad as I feared (of course there could be a little bit of revisionist memory going on after a month has lapsed). It took the 4 of us about a week to fair the hull. Lots of coffee and loud gypsy punk got us through the more onerous torture boarding, and afterwords we were able to enjoy this view.


Before we painted, I got a close up shot of that scarhped stealer plank joint I promised.


While the planking was being finished off I also started hacking away at the keel and deadwood. The deadwood (the filler between the lead keel and the hull, which will complete the shape of the boat) on this boat is quite a bit more substantial than that on the twins. I cut up 5 lengths (between 2 and 6 feet long) of 4" thick oak and glue it all together. . .


One of the first jobs when we get back from break will be to carry this hunk of wood over to the bandsaw and cut it to shape. The pattern, lifted off the full size lofting, is partially visible in the background. The staggered ends of oak in the middle of this picture will be faired off into a nice curve to match the bottom of the hull and the lead keel will be placed along the bottom of the long piece of oak in the foreground of this picture. It is all connected via 3/4" bronze rod going thru floor timbers (coming soon!) all the way thru the hull, deadwood and lead.

While I was away in NYC for Thanksgiving week, the shop flipped the boat over.

We spent the next couple weeks installing the floor timbers, which tie together the frames, the keel, and the garboard. They also provide a place for the thru keel bolts I described previously. Finally, the sole (floorboard) of the boat will lie directly on the floor timbers (unlike the twins, which had special "sole timbers" which spanned the boat).

I was dreading the installation of the floor timbers since I remembered what a pain they were to riviet into the frames. The frame spacing is only 8" and you have to drill a 2 or 3" hole thru the frame and floor timber that doesn't angle down into the plank. Well a right angle drill solves the first problem (barely) but doesn't help with the second as the chuck is still too big. This $10 attachment made the job easy.

We also faired the sheer and installed the sheer clamp. The clamp is 2 pieces of douglas fir running fore and aft which stabalize the boat shape as well as provide a place for attaching deck beams.

One other thing. . . we faired the inside of the boat as well. That fancy compass plane I bought last month was just the ticket. It scrapes things up pretty good (you have to plane across the grain as the frames are in the way), but a little 30 grit sanding cleans it up nicely, and the boat ends up nice and smooth. We did sections without the plane (we only had one) and just with sandpaper, and the result was pretty bumpy.

Next step . . . breasthook and deckbeams (for starboard / port stabilization). Then we'll raise up the boat, and attach the deadwood and keel.

We had graduation on December 13th, and it was sad to say goodbye to Josh and Jamie (who I built the Twin with), Kat (who is building the Mermaid with me) and of course Martin and Tyler (who I built character with).

The last few weeks were crazy busy not only with the mermaid, but also with holiday gifts! Here is a sampling.




Just kidding. . . that last one was my favorite piece from a show at the Center for Furniture Craftsmanship. It was a great show, lots of strange designs done very, very well.

Finally, there was a launch. The 3 newbies (Justin, Thor, and Kelly) launched the Northshore Dory they have been building this term. It came out beautiful and rows like a dream. It's for sale, by the way.

Mermaid Planking

It has been a great couple of months. Fall was beautiful as ever in the Northeast. Nicole and I went camping and hiking in the White Mountains and western Maine (right in the middle of the drive between Rockland and Burlington) a couple times. We found some gems : Tumbledown mountain in Maine (greatest alpine swimming hole ever) and Baldface mountain in the Eastern Whites. Both were great day hikes. My parents then came out for a 1 week visit. We rented a house in Rockland and they got to tour around Maine. My mom went for her first kayak! She wants one now.

Enough of that. On to the boat building! I can't believe how fast the planking went on this boat. I was looking back at the last post and there were no planks on the mold, just frames. 2 months later, and she is done. I don't have a picture of the completed planking as I'm on a long weekend in Vermont, but Phil and Pat should be finishing up the sheer planks today.

One of the great reasons to build wooden boats is the beauty of the place you get to work. This is my typical view when I show up at the shop in the morning. The light is amazing.

Of course once everyone arrives and the noise starts and the dust flies the ideal is broken, but these little moments of perfection go a long way. Hopefully not just for the day, but for a long time to come.

I still love my bench, which is starting to look like something out of Wooden Boat Magazine. Since I didn't have to move benches after my last project, I'm definitely nesting a little more.


My plane collection is getting bigger. The #7, #5, and #4 are all Stanley Bailey Sweethearts. The shoulder plane is an old Miller's Falls with the neatest little blade adjustment I've ever seen on a plane. If you look close you can see 2 throats. The blade is currently in the aft one. The entire blade mechanism can be moved to the front of the plane. Rounding out the collection is a Lie-Nielson block plane (the most expensive and most used. . . well, maybe a close 2nd to the #5), a rough and tumble block plane I use on stuff I don't want to use the Lie-Nielson on (like epoxy) and a Stanley #90 rabbet plane.


And I bought this just to make Nate jealous. . .


Here are a few shots of the mermaid. One of the nifty things we did was stealer planks, which were done on the boats we looked at up in Sommes Sound. Since the girth of the boat is really large in the middle and really small on the ends, you end up with not only wider planks in the middle of the boat, but also more of them. There are 13 planks in the middle and 11 on the ends. Where did the 2 planks go? Well, we scarph jointed 2 planks into one about 8 feet from the ends at 2 positions. You can see this joint in 2 spots in this shot (click to enlarge). Starting from the front end, follow the 4th or 6th plank from the bottom of the picture back until you see it turned into 2 planks.

In the old days this was done with butt blocks. The planks were butted up against each other and then you would have a block on the inside of the boat that acted as a gusset to hold them together. Not very strong. Our method was more difficult, but will make for a nice strong joint. We first hung and fit the 2 planks in the middle of the boat. We then fit the 2 pieces that would join them (one aft and one forward), but left them long. Next we figured out were the scarph would be and marked our line (just like we do for turning a few boards of cedar into one long board). We then took everything off the mold, cut the scarphs, and then put everything back onto the mold for glue up. The trickiest part was the glue up. We had to be sure to tape off all the appropriate surfaces, as we can't have glue in between the planks or the planks and the frames (or worst of all, the planks/frames/mold). Once the glue was set, we had to pop the now very long plank off one more time for clean up and then we did the final fitting onto the mold. It looks pretty hot now that I've faired these in. I'll get a close up shot for next time.


In our spare time, we've also been doing the lead pour. This keel is more difficult than the one for the twins. While it is a little smaller (930 lbs. vs. 1400 lbs for the twins), the shape is a little more complex. Phil and Pat ended up lofting the mold shape every 1 1/2" (the width of a 2X4) and cut out about 2 dozen 2X4s to shape, stacked them on end, faired them out and then put the 2 sides together. Just like last time, we then lined the mold with masonite and ceramic paper.

The set up


And the result

Note that the thickness of this keel changes from top to bottom and front to aft.

Almost everything went perfect with this lead pour. The only thing I forgot was to break the fall of the lead where it lands in the mold, as all that hot, heavy lead damaged the cermaic paper lining. So there is some paper in the keel, but it was a pretty easy fix. You just throw some copper nails in to attach the lead pieces on either side of the paper (which are really already attached at some other point in the keel), dig out as much paper as you can, and then fill the seam with some epoxy. Once this thing is painted, you'll never know.

Next step, fair the boat. . . including bunging the 2000 or so screw holes and caulking 700 feet of plank seam.

The Twin Sails! and I found a mermaid. . .

So here is the story with the Twin. We launched her in June as the world's largest, clumsiest 4 person rowboat. It really does not row all that well. That's ok, she's a sailboat, not "one of those outward bound boats" everyone keeps asking us about. Over the next couple months we got mast partners installed, carbon fiber masts arrived, sails arrived, and finally, we broke down and made sprits and boom since we have no idea when the carbon fiber versions will arrive.

Big day arrives, the boat is rigged and our patron (Frank Blair, who commissioned the boats) is in town. The plan is to sail the boat to the Maine Homes, Boats, and Harbor show. Everything is perfect. A 10 - 12 knot breeze, a sunny day, and the boat sails away from the dock. Beautiful, until we haul in the mainsail to start pointing upwind and the gromet that holds the mainsheet to the sail blows out. Oh well. As they say, you get what you pay for, and the sails were donated.

Well, a month later, we got her sailing again. Not a great day for pictures since the wind was light, but I've sailed her in a good breeze and it is a blast.





Hopefully next week we'll do a little trip out to the islands on this beauty.

Meanwhile, we found a mermaid. If you remember, this boat was designed and built locally, about a 2 hour drive away. We called up the boatyard and it turned out they had 2 in the harbor and 3 on the hard, so we got to go inspect some boats. The blue and red boats are the mermaids.

Here is one we got to inspect up close, which was very helpful since the instructions, while better than what we had for the twins, still lack some of the detail we need.

We are making steady progress. Last time the boat was just a group of molds and a keel. Next step was to put in ribbands. These are all notched into the molds (beveled notches no less) by hand. About 350 notches. Again, these are not part of the final boat. They just provide support for the frames.

Finally. . . some real pieces for the boat. We can now bend the frames around the outside of the mold. This is a lot easier than bending them into the inside of the boat (as we did on the twins).


We did end up breaking a lot of frames though. This boat has a lot of twist in the back. Not only do the frames get bent over the curve up and down, you also need to bend them front to back to keep them perpendicular to the keel. Unless you have perfect grain, they tend to crack. We did the first 60 or so frames without breaking any. We did the back of the boat last and ended up breaking one or two frames for each one we successfully installed. But we made it. . .


The last piece we need before planking is the transom (back of the boat). This is a curved, raked transom. It is the hardest type to build. We are making it a little bit easier by carving out the curve rather than bending it to a mold, but it is still pretty tricky. It is even trickier when you do the patterns incorrectly. Here is a good picture. The left side of the transom is carved out to the patterns I took off the lofting board. The right side is after I carved away enough wood to get it to actually fit onto the boat. It took all day to get it right. It took all night to figure out how I was so far off. The lofting is drawn to the outside of the planking. The transom is located on the inside of the planking. Since the transom is raked (at an angle) this translates to a large error, as you can see.

New Project!

I know, it has been a long time. My 3 reader's must have missed me terribly.

There has been a lot going on, nothing terribly exciting. After vacation, I worked on the twin a little more, getting in the mast partners. Since my new camera is on the fritz, that story will have to wait. But she sails, and beautifully.

For now, I'm going to skip ahead. We've started the next project. It is a 23' daysailer called a Mermaid. It was designed/built by Butler&Earl on Mt. Desert Island back in 1948. Remember that Herreshoff 15 I was drooling over in the last post? Well, this boat is awfully similar. Needless to say, I'm quite pleased to be on this project. But can you believe it? I can't find a picture on line. There was one a few weeks ago since there was a Mermaid for sale, but the posting has since been taken down.

Oh well, you'll just have to use your imagination.


There is a lot going on here, but first a close up of the top so you can see what I'm talking about.


This should look a little bit familiar. The 2 piece keel is being clamped together up top. The first plank will be installed into the notch that is created when the 2 pieces are put together. Just like on the last boat.

But what is up with all the notches in the molds? And that batten sitting in them? I'm glad you asked. This boat will be carvel planked, as opposed to the last one which was lapstrake planked. Carvel means the planks will be butted up over one another rather than overlapped, giving the boat a smooth hull. Since the planks are not going to be fastened too each other, we need to install the frames first. (On the lapstrake boat, we installed the frames after we planked and flipped the boat over). But I'm getting ahead of myself.

First, we built the molds, same as last time. But we subtracted the size of the frames (7/8") from the molds so they end up smaller than the actuall cross section of the boat. Next, we notch the molds to accept battens (in this use, they are called ribbands). Once the ribbands are installed we will steam bend frames over them and then we'll have something onto which we can install the planking.

Confused? That's ok, I'll have more pictures soon!

Interlude - Summer Vacation 2009

After the launch we get a (I think) well deserved 3 week break. Of course, I think of it as a vacation from my vacation since I'm on sabbatical already.

Nicole was here for the launch. We had plans for kayaking, sailing, and camping on the coast of Maine with a stop at the Wooden Boat show at some point. The weather had other plans. After spending 2 nights at a very wet campsite in Acadia Maine we cruised back to Rockland to dry out and make new plans. We ended up going to Salisbury Beach in MA, the Wooden Boat Show in Mystic, CT, Jamestown and Bristol RI, Boston and then back to Rockland where we ended up doing a overnight sail to Greens Island and where we are now planning to finally do some backpacking in the Bigelows to round out the trip.

Got all that? Here it is again slower, with more pictures.

The kayaks are loaded, and we are ready to go.
Acadia was wet, but we had a great "rock and roll and rescue" kayak class before we gave up. Since we spent most of the time in the water, we didn't notice it was raining. Until we tried to cook dinner in the rain. When it was still raining on the 3rd day, we went home. But the class was invaluable. We can now self rescue with a paddle float and rescue each other if we get knocked out of our kayaks. And I'm very close to being able to roll. Later on in the trip I had my first accidental kayak flip and Nicole rescued me. . . I didn't even have to get out of the boat! I just waited upside down for her to come next to me and then I used her boat to help myself up.

After a break in Rockland we attempted a kayak near Kennebunkport ME but wisely gave up when the conditions and tide were against us. We were going to camp just a 1/4 mile offshore but it was pretty nuts. So we headed further South to Salisbury Beach. And we found sun! And a vintage arcade! And Ozzie's fried dough!


We found out that day that there was a boating accident right next to the beach the night before (the night we turned back from our kayak trip). 3 people were rescued by the coast gaurd after a crazy night on the breakwater. One was still missing when we left. The next day was beautiful. The beach is right next to the Merrimac river. We kayaked across for lunch in Newburyport, a cute New England City with big old houses.

Since the weather was so much better we continued South. This time to Mystic CT for the wooden boat show. I could post a dozen beautiful pictures, but I'll limit myself to 1. Check out this homemade beauty. . .

Next stop, Long Island! The easy way though. We left our car at the ferry dock and went to the tip of northern Long Island. It was a nice crossing and Ashley and Ramses met us on the other side for lunch.

After the boat show we headed towards Rhode Island. Turns out Rhode Island is really beautiful. We went to Concanticut Island in the middle of Narrangaset Bay and camped at this interesting RV site. It is ideally located right on the water and the locals seem to know it. Most of the sites are sold out for the season, and some of the sites have been passed down generation to generation. But the tent sites were all available and they were quite nice. We spent 2 days there kayaking and biking the island.

Finally a break from camping. We went to Bristol RI and stayed at a B&B for a couple nights. This is the first time we've ever been in a real B&B stateside. While it is quite common in Europe to find a B&B that is just a room in someone's house, in the US it is usually just another name for and Inn. But our hosts welcomed us into their house, gave us a map of the city and good recommendations on what to do and eat. Of course, I knew what I wanted to do. The Herreshof Measum! Now I will have to bore you with some boat pictures.

The sheer line on the Buzzards Bay 25 is the definition of boat sexiness.


Not only are the boats shapely, but the cockpits were nice to look at too. Here is the cockpit of Clara, Nat Herreshoff's own Cat-Ketch.


And finally, my new front runner for the boat-I-want-to-build. . . a Herreshoff 15.

After the measum we had another kayak lesson. . . this time a strokes class. We also did a little more kayaking in the bay before heading to Boston to spend the night with our friends Jeff and Manjeree.

When we got back to Rockland, the weather had finally turned a corner. We talked our way onto Sarah's pretty friendship sloop (shame on me for not getting a picture of her boat in the harbor) Anna R for a trip across the bay to Greens Island, where the Atlantic Challenge founder, Lance Lee, owns property. The sailing was perfect and the island was just a little bit magical.

This beauty crossed our path on the way home.

Launch!

The big day finally arrived. The boats were pretty much ready. No masts yet, so we are launching the world's largest 4 person row boats.

The launch was a 3 step process : get the boat out of the shop, get the boat to the ramp, and finally get the boat into the water.

Here is the first step. Just like the Egyptians. Except our long tubes are lightweight aluminum. But the boat is still heavy. The timbers the sled were made of are getting pretty rotten as well, so they tended to dig in rather than roll. It took several of us to get the boat lined up with the exit.


But we finally did.

Dale is a good friend of the shop. He is a mason and therefore has a lot of big boy toys, including a tractor, a farm winch, and a really big truck. Here he is pulling the boat along the muddy parking lot.

This worked for awhile, but it turns out what worked best was simply tying the rope around the hitch on the back of his truck and towing it to the ramp.

Meanwhile, a few folks have been busy at the ramp (it is low tide) getting the slides ready for the sled. They greased it up with 3 gallons of Crisco.

Here she is, all ready for launch. See the gudgeons (the bronze pieces which hold the rudder) in the back? We were up until 2am the night before installing them (and finishing the rudder) . . . we have yet to put the rudder on.


Of course, one of the many cool things about this boat is that there are 2 of them! Now we just wait for the tides. Check out the 8 monster oars which new apprentices Jim and Doug made for us the last few weeks.

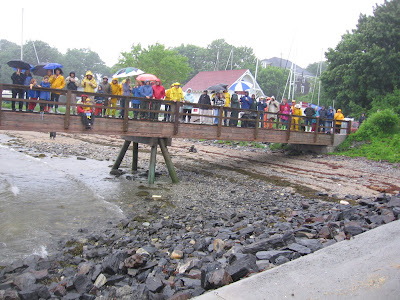

As you have already noticed, it was rainy. Really rainy. But we still had a crowd of about 100 show up for the launch. Maybe it was the free chowder.

It wasn't all about the twins either. We had 5 boats to launch. 1st up was Pat with his new Susan Skiff.


Next was Curtis and Martin with the A&R Tender


Then Kat and Phil with their Lawley Tender

And finally it was our turn.

OK, funny story now. See the sled underneath the boat in this picture?

In theory, the rope attached to this sled keeps it on the slide. Well, the theory doesn't work in practice if the rope breaks. We ended up taking the sled with us. We were wondering why the other boat was rowing circles around us.

Nevertheless, we were able to get her to the dock.
